Submitted by curator on Fri, 10/16/2015 - 13:56
|
|
|
|

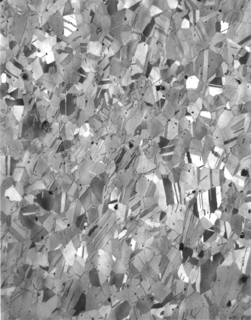

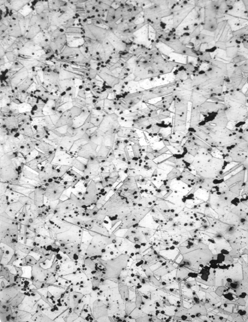

Inv. 31-52-245 Bar fragment A cut from the square end: magnification, 100x Etchant: for micrograph on left, Klemms III; for micrograph on right, Ammonium hydroxide + hydrogen peroxide (Sn, <0.012%; As, 0.99%; Ni, 0.10%)
Along one edge in particular, beneath a thin layer of corrosion, there appears to be small islands of re-deposited copper that are mixed up with non-metallic corrosion products. The microstructure of the sound metal consists of equiaxed polyhedral grains that, in their twinning and distortion, are indicative of an annealing treatment after a moderate amount of cold-working along the artifacts length (left micrograph). Small globular inclusions are well dispersed throughout the interior of the metal, with no particular orientation (right micrograph).
Microhardness VHN: 111 ± 7 (n=5) Very uniform; what data scatter there is (VHN ranging 122 to 102) seems to be a genuine record of variations in grain size within the bars body. What microstructural evidence there might have been of deliberate working of the bars squared-off sides most likely is now lost to corrosion.
|
