Submitted by curator on Fri, 10/16/2015 - 13:38
|
|

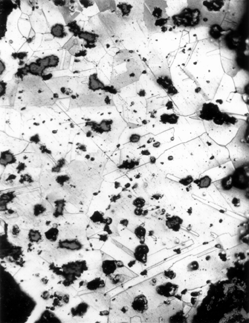

Inv. 32-21-130 Bracelet (two pieces) A complete section from the broken end of the larger piece: magnification, 200x Etchant: Klemms III (Sn, <0.020%; As, 0.54%; Ni, 0.44%)
Despite extensive corrosion of this artifacts surface, the microstructure still retains sufficient polyhedral grains that, in their twinning and distortion, do indicate there was a moderate amount of non-uniform cold-working, to produce more fine grains close to the artifacts edge, prior to a final annealing. Inclusions are large and coarse-textured, and most likely are remnants of non-metallic material (matte) that became entrapped in the copper during its original smelting.
Microhardness VHN: 110 ± 9 (n=5) Uniform; data scatter (with the VHN ranging 124 to 99) is most likely due to the presence of intergranular corrosion products.
|
