Phase II

Phase II

We do not know whether Hissar IC at Sialk was directly followed by the Proto-Elamite occupation and therefore, we do not know which gray ware phase of Tepe Hissar is contemporaneous with it. For the moment we assume that it corresponds in time with Hissar IIA and IIB.” (Schmidt 1937: 361)

The numbering system used here cites the UPM inventory number followed in brackets by the original field number.

Location of PIXE Analysis

33-21-392 [H4476]
Pin, hemiconoidal head (two fragments)
Grave DH44 X8
As, 0.44%; Sn, <0.027%; Ni, 0.029%

33-21-387 [H4523]
Pin, pyramidal head
Grave DH34 X8
As, 1.9%; Sn, <0.019%; Ni, 0.25%

33-22-547 [H4231]
Pin, double spiral head
Grave DH06, etc.
As, 0.62%; Sn, <0.037%; Ni, 0.015%

89-00-005 [none]
Pin shaft
Grave DH46 X4, #3
As, 0.030%; Sn, <0.022%; Ni, 0.014%

33-22-543 [H4202]
Pendant or stamp seal
Grave DF79 X13
As, 6.1%; Sn, <0.022%; Ni, 0.014%

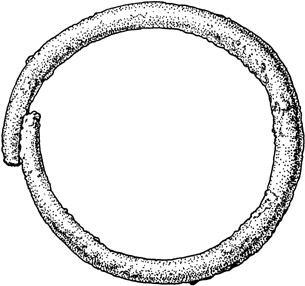

33-22-553 [H2181a]
Anklet
Grave DG53 X8
As, 5.5%; Sn, <0.012%; Ni, 0.014%

33-22-554 [H2181b]
Anklet
Grave DG53 X8
As, 3.9%; Sn, <0.016%; Ni, 0.014%

33-22-555 [H2181c]
Anklet
Grave DG53 X8
As, 3.7%; Sn, <0.017%; Ni, 0.022%

33-15-409 [H1195]
Bracelet
Grave CG25 X28
As, 0.39%; Sn, <0.015%; Ni, 0.065%

33-15-410 [H1187b]
Bracelet, 1.5 coils
Grave CG25 X17
As, 0.10%; Sn, <0.020%; Ni, 0.026%

33-15-411 [H1004]
Bracelet
Grave DF18 X45
As, 0.032%; Sn, <0.021%; Ni, 0.015%

33-22-551 [H1919]
Bracelet, 1.75 coils
Grave DF78 X6
As, 4.1%; Sn, <0.013%; Ni, 0.11%

33-22-552 [H1920]
Bracelet, 1.5 coils
Grave DF78 X6
As, 3.9%; Sn, <0.010%; Ni, 0.11%

33-22-556 [H2222]
Bracelet
Grave DG51 X3
As, 0.28%; Sn, <0.010%; Ni, 0.014%

33-22-557 [H4201a]
Bracelet
Grave DF79 X13
As, 2.6%; Sn, <0.012%; Ni, 0.041%

33-22-558 [H4201b]
Bracelet
Grave DF79 X13
As, 2.7%; Sn, <0.018%; Ni, 0.036%

33-22-559 [H4200a]
Bracelet (corroded together with 33-22-560)
Grave DF79 X13
As, 2.4%; Sn, <0.019%; Ni, 0.062%

33-22-560 [H4200b]
Bracelet (corroded together with 33-22-559)
Grave DF79 X13
As, 2.5%; Sn, <0.014%; Ni, 0.076%

33-22-572 [H4199]
Spiral bracelet; small, 4 coils
Grave DF79 X13
As, 2.6%; Sn, <0.018%; Ni, 0.044%
Micrograph

33-22-569 [H5122]
Bracelet
Grave DF78 X27
As, 3.5%; Sn, <0.027%; Ni, 0.028%

33-22-570 [H5184]
Bracelet, 1 coil
Grave CF38, level 3
As, 0.59%; Sn, <0.014%; Ni, 0.016%

33-22-574 [H4851]
Bracelet, 5 coils
Grave CG89 X2
As, 0.29%; Sn, <0.017%; Ni, 0.014%

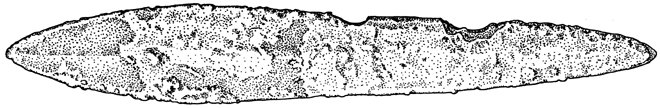

33-21-386 [H4677]
Blade
Grave DF46 X4
As, 0.30%; Sn, <0.020%; Ni, 0.080%

33-15-391 [H0254]
Chisel [cleaned]
Grave DF08, d. 1.05­2.0
As, 1.0%; Sn, <0.016%; Ni, 0.016%

33-15-401 [H0577b]
Tube
Grave DG00 X16, etc.
As, 0.10%; Sn, <0.015%; Ni, 0.015%

33-21-389 [H2720]
Bar, tapered
Grave CF57, center, room W
As, 0.032%; Sn, <0.019%; Ni, 0.023%

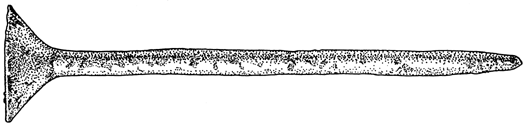

33-21-390 [H4809]
Nail, concave head
Grave EH13 X40
As, 0.052%; Sn, <0.010%; Ni, 0.022%

33-22-542 [H2086]
Nail, flat-topped head
Grave DF89 X7
As, 0.38%; Sn, <0.013%; Ni, 0.012%

33-15-396 [H0006]
Spiral fragment
Grave Plot B, CG60 etc.
As, 1.7%; Sn, <0.021%; Ni, 0.015%

89-00-001 [none]
Ingot
Grave FF95, the twins
As, 0.021%; Sn, <0.010%; Ni, 0.022%

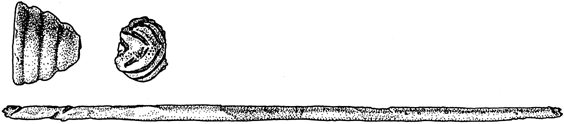

33-22-116a [H2171]; 33-22-116b [H2171]; 33-22-116c [H2171]
Rod part of a spindle; Whorl part of a spindle; Ring part of a spindle
Grave DG53 X8
33-22-116a: As, 0.97%; Sn, <0.014%; Ni, 0.015%
33-22-116b: As, 0.26%; Sn, <0.013%; Ni, 0.014%
33-22-116c: As, 3.4%; Sn, <0.014%; Ni, 0.067%
